6000pcs/h Fully Automatic Rotary Type Egg Tray Machine 6 Layer Drying Lines

Name: 6000pcsh Fully Automatic Rotary Type Egg Tray Machine 6 Layer Drying Lines
Brand: Nanya
Price: 1 USD

China 6000pcs/h Fully Automatic Rotary Type Egg Tray Machine 6 Layer Drying Lines wholesale

Brand Name : Nanya

Model Number : ER6000-B

Certification : CE/TUV/SGS/ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, L/C, Cash or western Union

Supply Ability : 20 Sets Per Month

Delivery Time : 45-75 Days

Packaging Details : Export Standard Packing

Product Name : Pulp Molding Machine

Capacity : 6000Pcs / H

Drying Type : Hot Air Dry

Processing Material : Waste Paper / Waste Carton / Newspaper / White Paper

Forming Type : Vacuum Suction

After-sales Service Provided : Engineers Available to Service Overseas

Voltage : 220 V - 450 V

Standard : CE/TUV/SGS/ISO9001

Applicationa : Egg tray, egg carton, fruit tray, medical tray

Contact Now

6000pcs/h Fully Automatic Rotary Type Egg Tray Production Line with 6 Layer Drying Lines

Specifications:

Model Type	ER6000-B
Capacity	6000 pcs/hour
Workshop Requirement	700 m²
Electricity Consumption	~210 kw
Electricity Installed	350 kw
Material Consumption	360~400 kg/h
Water Consumption	1200~1400 kg/h
Worker Requirement	5~6 persons
Container Requirement for Shipment	9 x 40 HQ
Forming Machine (Rotary Type)	Rotary type with 8 plates. Each for 6 pcs/time
Drying Line	22x3.4x4m 6-Layers
Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 65g~70g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.

Fuel Consumption (One Item Selectable)

Natural gas	100~110 m³/h
LPG	36~40 m³/h
Diesel	90~98 kg/h
Heavy Oil	92~100 kg/h
Steam	1.8~2.0 ton/h
Wood	360~400 kg/h
Coal	240~270 kg/h

Descriptions:

It’s a fully automatic egg tray production line
Mainly used for the products with simple structure but in big quantity, such as egg trays, egg carton, fruit trays, cup carriers and disposable medical care products.
This type of production line is constituted by a hydrapulper system, a rotary type forming machine, a single-layer drying line, and corollary equipments.
Products are produced automatically from waster paper or other type of paper. It’s high-efficiency, energy-saving, durable, wieldy and safe.
SIEMENS electrical control parts, FESTO & SMC pneumatic control parts. Apply International famous brand of control parts to obtain excellent performance and universality maintainability.

Production Information and Our Warranty:

Status: Brand new
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of origin: Guangdong, China
Brand: NANYA
Model Type: ER6000-B
Voltage: 220V - 450V
Approval: CE, TUV,SGS, ISO9001
Warranty: 12 Months
After-Sale Service: Engineers available to service machinery overseas

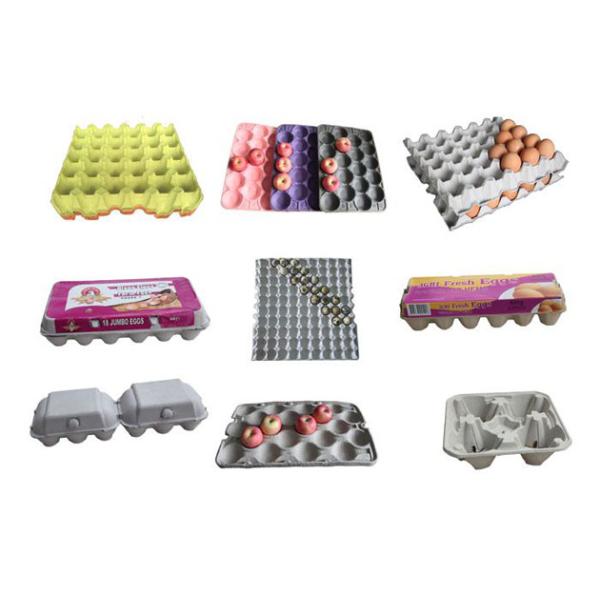

Applications:

Egg tray	20,30,40packed egg tray… quail egg tray
Egg carton	6, 10,12,15,18,24 packed egg carton…
Agricultural products	Fruit tray, seeding cup
Cup salver	2, 4 cup salver
Disposable Medical Care Products	Bedpan, sick pad, female urinal…
packages	Shoe tree, industrial package…

Working Theory:

The track or worker carries the raw material, such as waste paper, waste carton or used newspaper into the conveyor firstly;
Then the conveyor pours down the raw material into the hydrapulper mixing with certain mater;
Then the mixed paper pulp will going into the pulp adjustment pond to be adjusted to a certain consistency.
The pulp will flow into the second pond called supply pond, in which the pulp keeps a consistency stably;
The pulp will be bumped into the forming machine. The fiber in the pulp will cover the wiremesh of the mold with the effect of the vacuum. So the wet products are shaped on the working platform.
Finally the wet products will move into the drying line automatically. After a round or two, the products will get totally dry and then go into stacker and get packed.

Technological process:

Competitive Advantages:

Fully automatic production line
Overseas technical support available
Proprietary technology
TUV Supplier Assessment Certificate
SGS Supplier Assessment Certificate
CE Certificate
Nanya - Chinese famous trademark
30 years experience in this field, Chinese reliable supplier, supported by the government and universities.
The standing director of Chinese packaging association

Business Terms

NO.	ITEM	DESCRIPTION
1	Payment Terms	30% down payment by T/T, 70% before shipment by T/T or L/C at sight
2	Delivery Terms	FOB Guangzhou, China. (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).
3	Delivery Time	45-75 days
4	Packages	Packages suitable for ocean transport. The small parts are packaged by wooden boxes. The big parts are protected by wooden support.
5	Installation	Seller should appoint 2 engineers to instruct buyer for installation, test-run and training. All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer. Besides, the buyer should pay the engineers subsidy of USD200/person/day and offer translation service.
6	Warranty	12 months after installation
7	After service	The seller will send spare parts for one year use by free. The seller will provide operating manual, drawing, process diagram for all of the equipments. The seller will instruct the operation, maintain method for the buyer’s worker after installation. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;
8	Quotation Validity	90 days after the offering date
